Bilstein Shock Absorbers

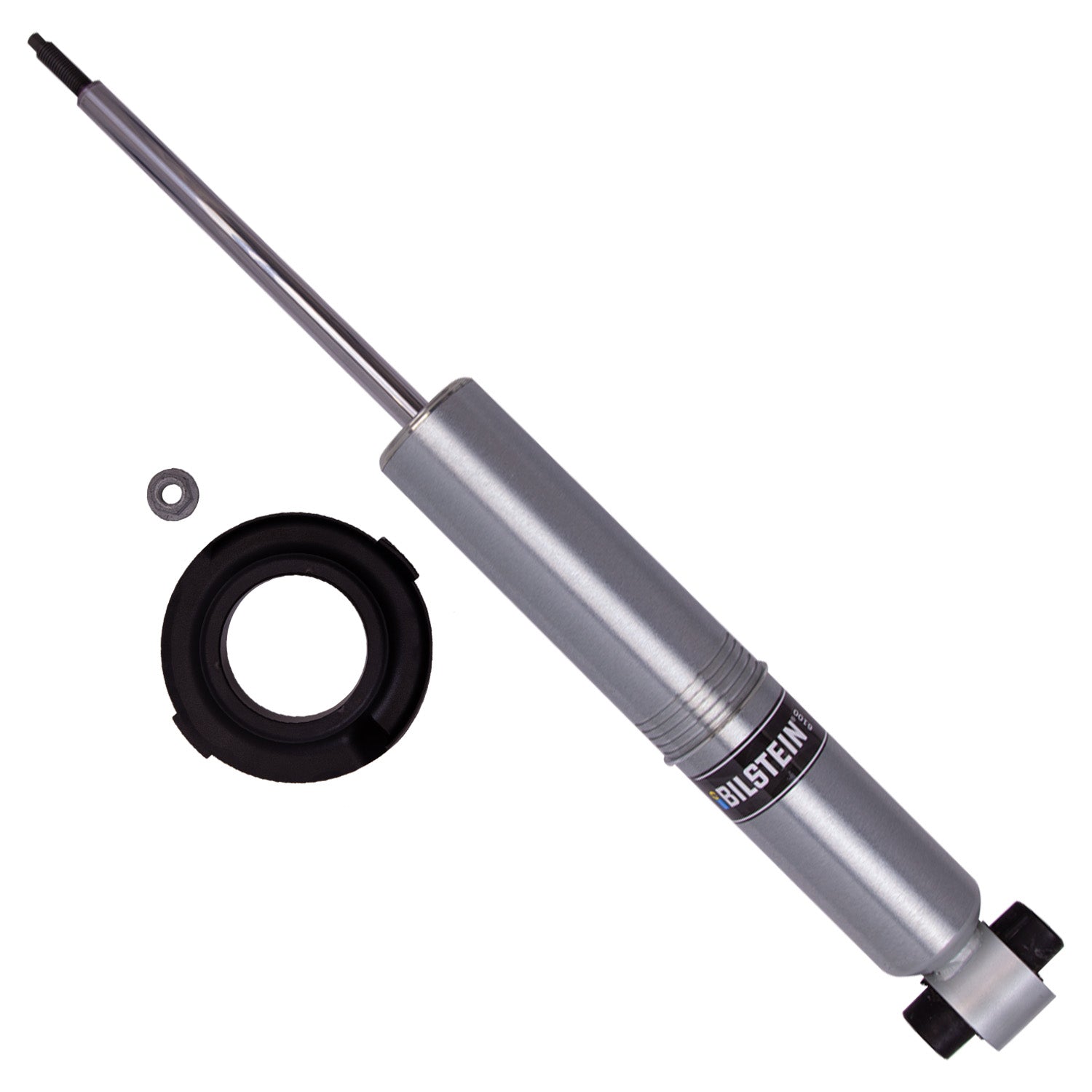

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.

• Large 60mm body for increased oil capacity, cooling, and long-term durability
• 60mm digressive piston improves ride comfort and control over rough terrain
• Vehicle specific tuning

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860895178
• Adjustable Damping: Non-Adjustable
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (ID): 60mm
• Boot Included: No
• Collapsed Length (IN): 17.11
• Collapsed Length (MM): 434.6
• Extended Length (IN): 25.56
• Extended Length (MM): 649.3
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 20.2mm
• PartType: Shocks / Struts
• Reservoir: No
• Segment: Light Truck
• Series: B8 6100 (Ride Height Adjustable)

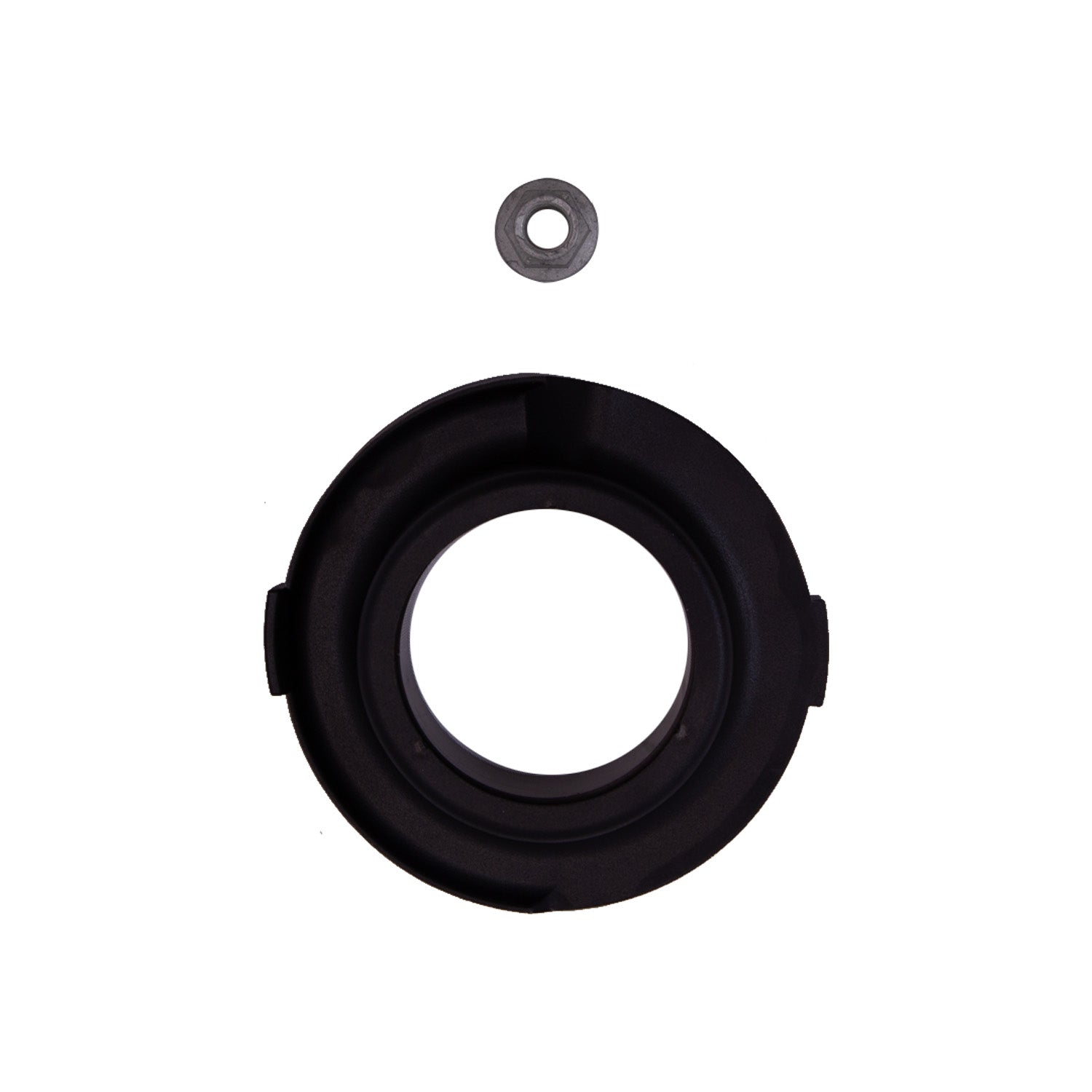

• Spring Seat Included: Yes
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 4.1500 x 4.1500 inches
• Weight: 11.3000 POUNDS
