Bilstein Shock Absorbers

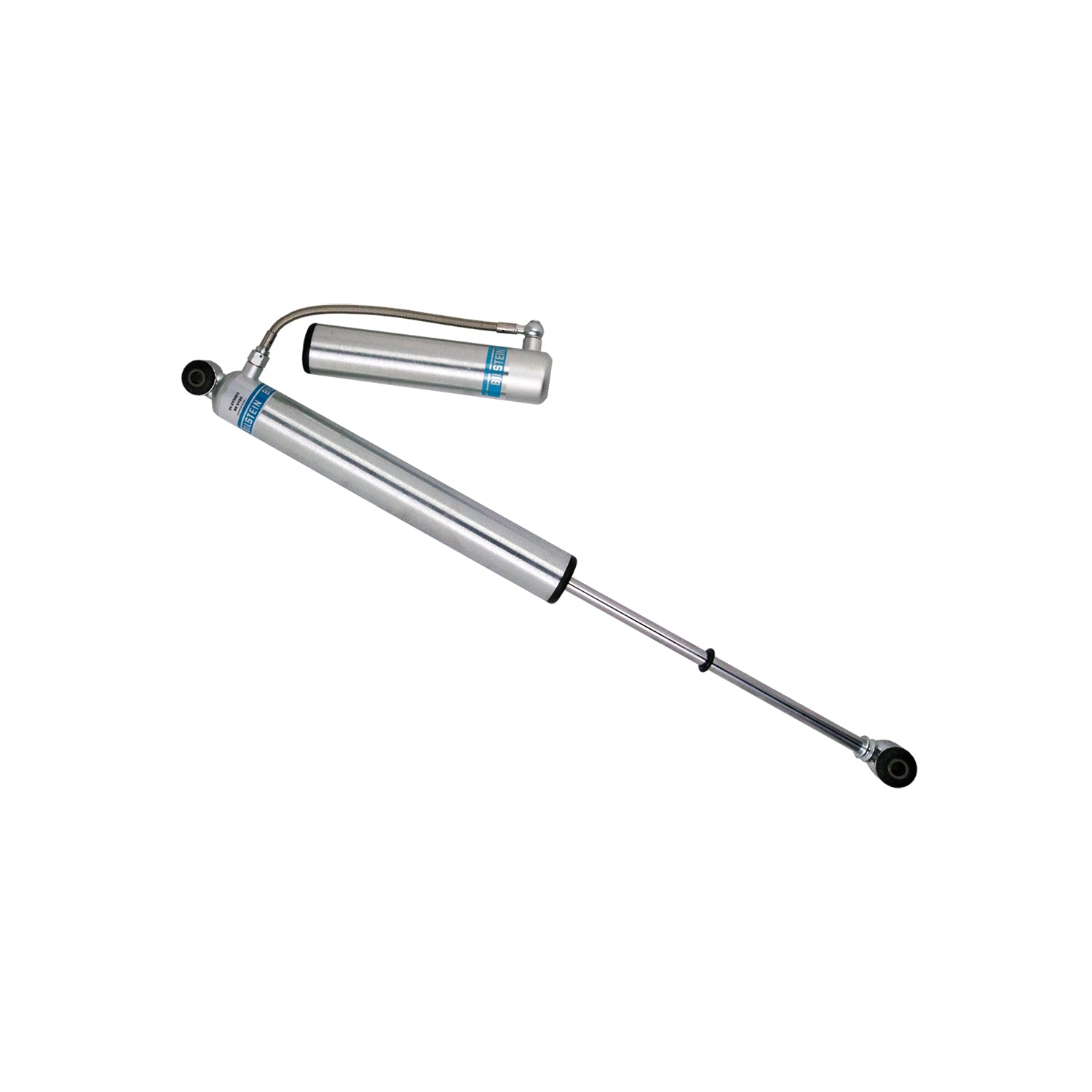

Bilstein B8 5160 Classic remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 Classic remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
• Remote reservoir increases shock oil capacity for greater heat dissipation

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860773599
• Adjustable Damping: Non-Adjustable
• Billet Reservoir Clamp Included: No
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (ID): 46mm
• Boot Included: No
• Collapsed Length (IN): 17.07
• Collapsed Length (MM): 433.5
• Extended Length (IN): 28.82
• Extended Length (MM): 732.0
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 12mm
• Optional Reservoir Clamp: 11-176015
• PartType: Shocks / Struts
• Reservoir: Yes
• Segment: Light Truck
• Series: B8 5160 Classic
• Spring Seat Included: No
• Upper Mount Type: Eye 12mm

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available Only While Supplies Last

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 4.1500 x 4.1500 inches
• Weight: 7.8900 POUNDS
