Bilstein Shock Absorbers

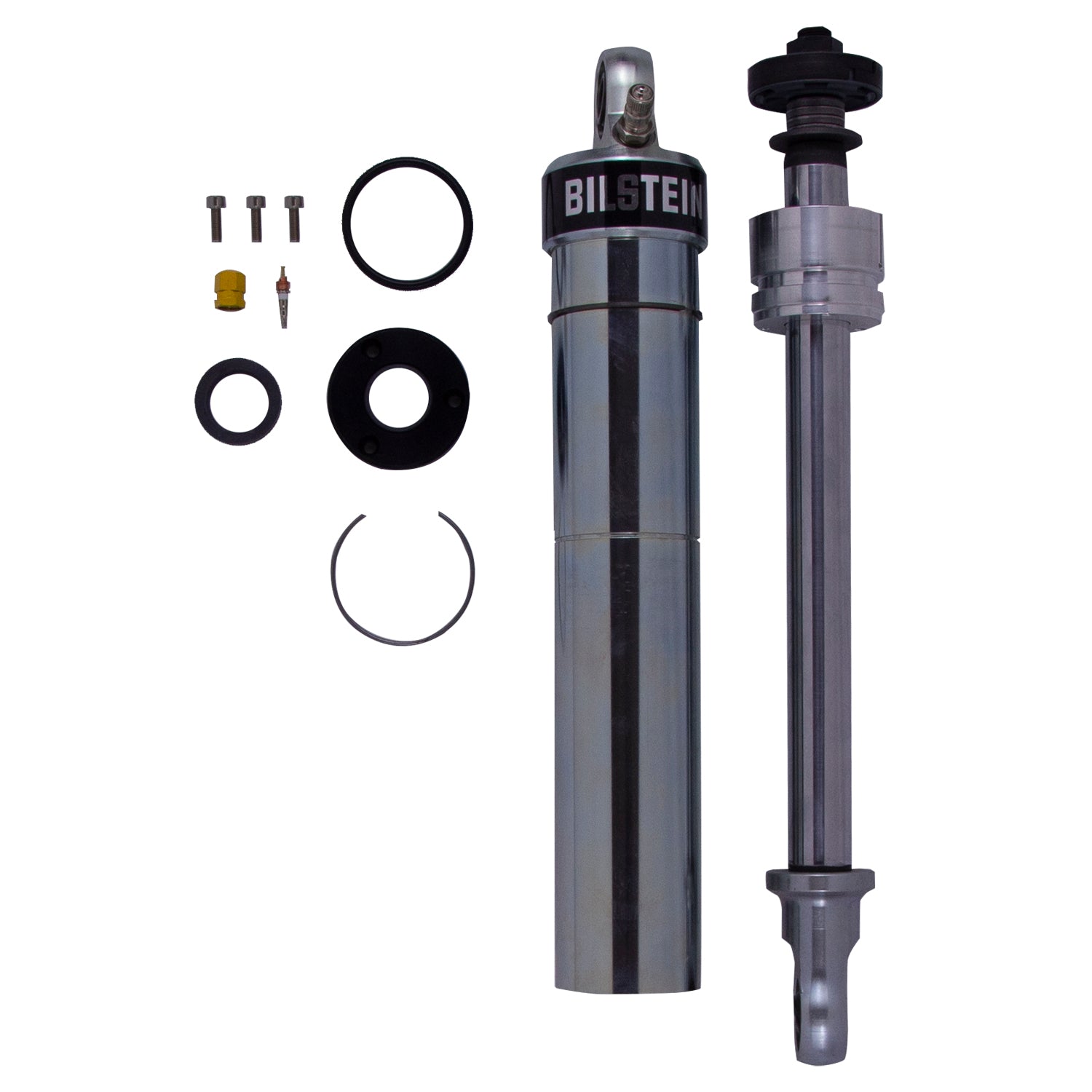

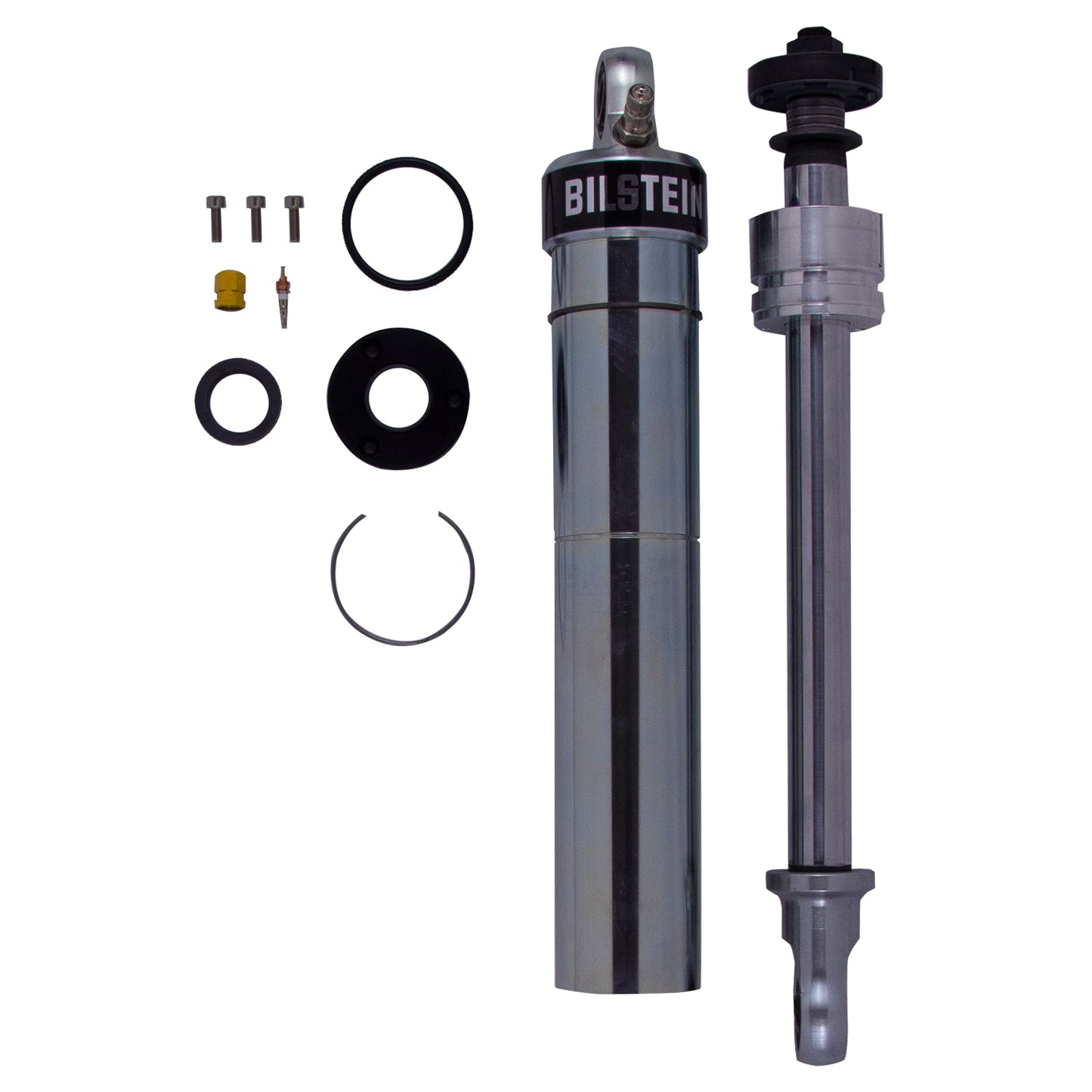

Bilstein EM46 Series shock absorbers are emulsion dampers that feature an all-steel smooth body construction and 46mm piston for motorsports applications.  The shock absorbers also include a large 22mm shaft, severe duty 3 stage high temperature rod seal and can convert to coilover usage (kit sold separately).  EM46 Series shock absorbers are ideal for racers looking for a rebuildable shock with the ability to create and fine tune spring rate as a replacement or supplement for suspension springs.

• Utilizes emulsion technology to regulate spring rate characteristics through variation of oil and nitrogen volume for limitless tuning combinations
• Smooth zinc plated OD body design allows for optional standard and coilover applications
• 22mm case hardened, centerless ground chrome shaft provides optimal displacement, brute tensile strength and resists chipping and scratching

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860825014
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body Screw Top (Non-coilover)
• Body Diameter (ID): 46mm
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 14.15
• Collapsed Length (MM): 359.3
• Extended Length (IN): 22.16
• Extended Length (MM): 562.8
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• PartType: Shocks / Struts
• Piston Type: Digressive
• Segment: Motorsports
• Series: EM46 Series
• Spring Hardware: B4-BOA-0000117
• Spring Seat Included: No
• Upper Mount Type: 1/2in Heim

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 5.2000 POUNDS
