Bilstein Shock Absorbers

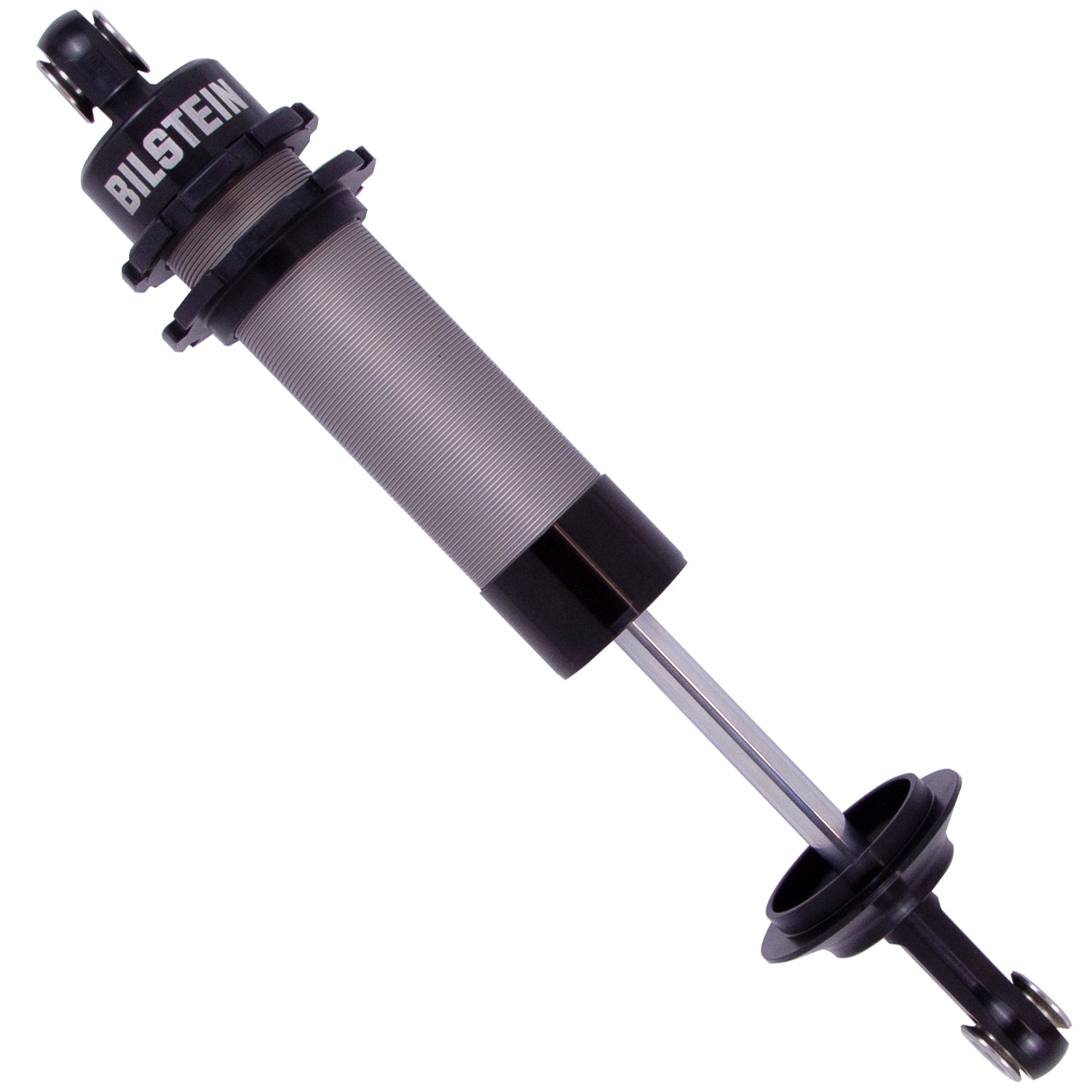

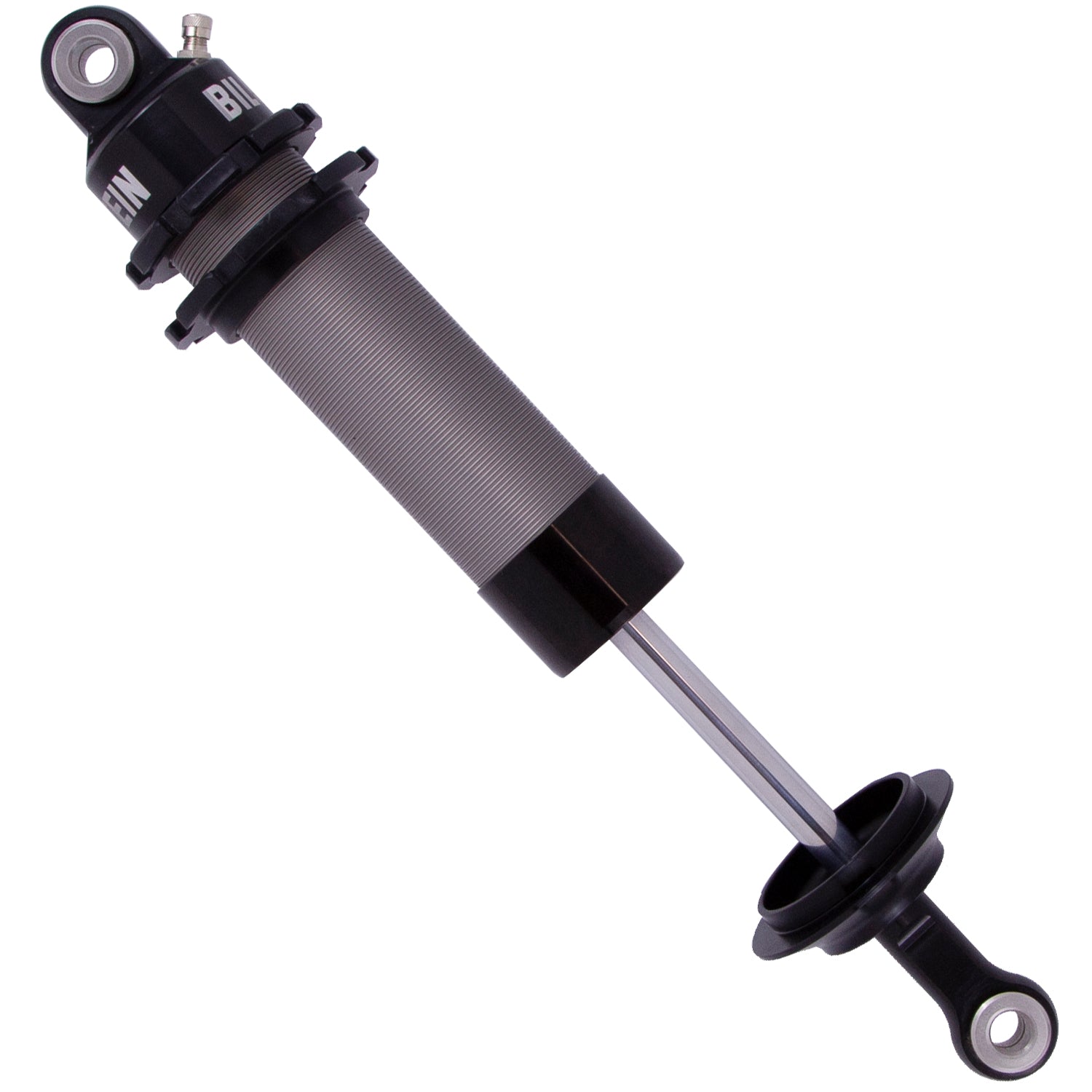

Bilstein ASM Series shock absorbers are designed to provide next level performance for the Resto-Mod and Pro-Touring market. With a variety of damper lengths to fit most popular applications, the shocks combine a great street-worthy ride quality with top level motorsports handling characteristics for a true total package. This modular aluminum design with a threaded shock body dissipates heat quickly. The hard-anodized coating reduces internal friction, and improves strength and durability. The ASM Series dampers are available in non, single and double adjustable configurations for premium tuning options to best fit your budget and driving demands.

• Designed to provide next level performance for the Resto-Mod and Pro-Touring market
• Modular aluminum design with a threaded shock body dissipates heat quickly
• Available in non, single and double adjustable configurations for premium tuning options to best fit your budget and driving demands

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860874951
• Adjustable Damping: Non-Adjustable
• Body Design: Threaded Body Screw Top (Coilover)
• Body Diameter (ID): 46mm
• Body Material: Aluminum
• Boot Included: No
• Collapsed Length (IN): 11.87
• Collapsed Length (MM): 301.4
• Extended Length (IN): 16.38
• Extended Length (MM): 416.0
• Finish: Clear Anodized
• Internal Design: Monotube
• Lower Mount Type: 1/2in heim
• PartType: Shocks / Struts
• Piston Type: Digressive
• Segment: Motorsports
• Series: ASM Series
• Spring Hardware: 2.5in
• Spring Seat Included: Yes
• Upper Mount Type: 1/2in heim

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 2.9000 POUNDS
